Two Lines Fully Automatic Plastic PE T-shirt Bag Making Machine for 1 Jumbo Film

You are here: Home » Products » Plastic Bag Making Machine » T-shirt Bag Making Machine » Two Lines Fully Automatic Plastic PE T-shirt Bag Making Machine for 1 Jumbo Film

automatic PE heat sealing and heat cutting T-shirt bag making machine 260pc/min

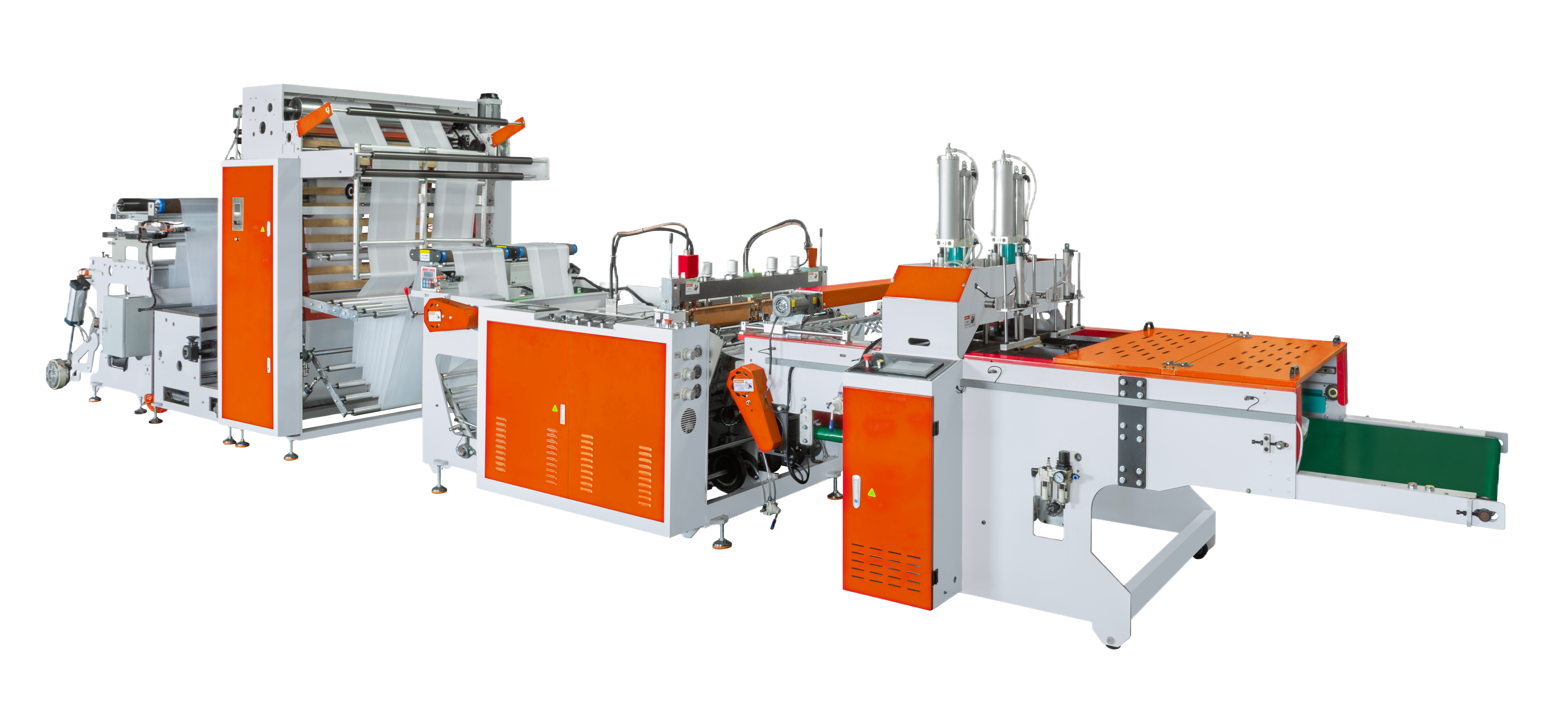

Two Lines Fully Automatic Plastic PE T-shirt Bag Making Machine for 1 Jumbo Film

Two Lines Fully Automatic Plastic PE T-shirt Bag Making Machine with slitting and gusset device .cut 1 big roll to 2 small roll

Model:
XP-HQ
Brand:
XINGPAI
Code:
8477800000

Availability:

Quantity:

T-shirt bag making machine sealing and cutting machine plastic bag making machine automatic T-shirt bag making machine

Product Description

Video

our Two Lines Fully Automatic Plastic PE T-shirt Bag Making Machine with gusset online .it can work with 1 Big Jumbo Roll,and sealing and cut 1 big film tube to 2 small film tube ,and do gusset online .it can improve work effective and save power .

Performance performance:

1. Unwinding tension AC frequency conversion fully automatic control

2. Easy-to-operate and adjust folding equipment

3. Quick-turn sealing knife, easy to clean design

4. The whole bag has a swing design, and the two bag openings do not stick together

5. With multiple automatic warning and automatic shutdown designs

Technical Parameters：

model	450 ×2	550 ×2
Maximum film width	1 200 mm	1 400 mm
Maximum diameter of film	900 mm	900 mm
Bag making width	200-400 mm ×2	200-500 mm ×2
Bag making length	320-650mm × 2	320-650mm × 2
Bag thickness	0.0 05 -0.05mm	0.0 05 -0.05mm
Bag making speed	200~250 pcs/min×2	200~250 pcs/min×2
Air pressure	6.5 HP	6.5 HP
Total power	16 kw	16 kw
Voltage	380V50Hz	380V50Hz
Machine weight	3500 kg	3500 kg
Dimensions	11500 × 1700 × 2200 mm	11500 × 1700 × 2200 mm
