Product Introduction：

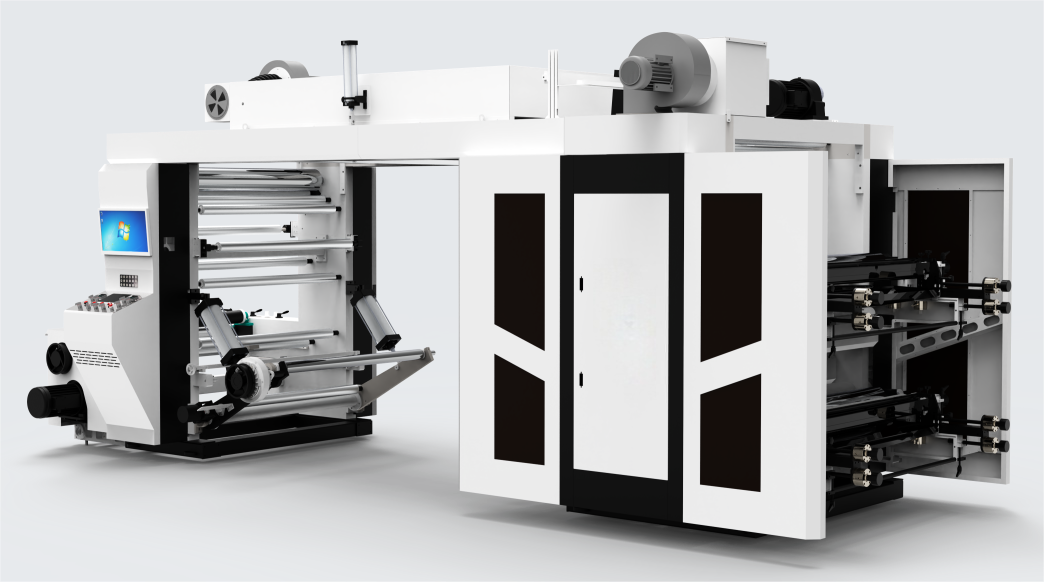

Machine type: PLC controlled flexographic printing machine
4 color flexo printing machine can printing all of roll to roll film(PE ,BOPP .OPP.PVC. PP .paper. nonwoven .PP woven)
Product Advantage：
1.Machine speed is 120m/min .high speed
2.Entire machine wall 75mm .it is very stable when machine running 100m/min
3.Standard machine with ceramic anilox roller .PLC adjust register, video inspecting system.
4.Bigger oven to make sure high speed
5.Automatic loading/unloading system
After sales service:
Installation and trainning service(it need extra cost)
2 years guarantee
Spare parts supply as free during guarantee
Technical Parameters：
Machine Model | YTB-4600 | YTB-4800 | YTB-41000 | YTB-41200 | YTB-41500 |
Applicable materials | PE:15-150um, Paper :15-300g/m ⊃2;,Nonwoven:15-120g， OPP/BOPP/CPP：10-100um,PVC/NY:10-120um | ||||
Max.Width of Material | 600mm | 800mm | 1000mm | 1200mm | 1500mm |
Max.effect Printing Width | 560mm | 760mm | 960mm | 1160mm | 1460mm |
Printing Length | 220-1000mm | ||||
Color | 4 colors, 4+0 ,3+1,2+2 | ||||
Max.Diameter of Roll Material | Φ1000mm | ||||
Machine speed | 130m/min | ||||
effective Printing Speed | 80 m/min 100-120m/min（with chamber doctor blade -optional ） | ||||
Accuracy of Registration | ±0.15mm | ||||
Thickness of plate | 1.14mm/ 1.7mm/2.28mm/2.54mm/2.94mm resin plate | ||||
how to choose the machine model (50m/min,70m/min,120m/min )
| flexo stack type printing machine | 50m/min speed printing machine | 70m/min speed printing press | YTB120m/min speed printing machine |
How to run: |
Straight gears,it will be noisy when at maximum speed |
Helical gears, no noise at maximum speed. |
synchronous belt.more silence when high speed |
Electrical Parts | All is made in china | Siemens motor, Delta inverter, Omron temperature control, Schneider Electric | Siemens motor, Delta inverter, Omron temperature control, Schneider Electric, Siemens PLC, WEINVIEW touch screen |
Printing accuracy | 0.5mm | 0.25mm | 0.2mm |
unwinding | 1 unwinding and 1 rewinding | 2 unwinding and 2 rewinding | pneumatic loading and unloading, also with motor (better) |
Gear on the plate roller |
inside the base |
|
The gears are outside the frame ( faster and ink won't fly out ) |
Camera (to see the printing effect). Automatic color registration | No camera | No camera | With camera (to see the printing effect). Automatic color registration (up, down, left, and right) Siemens PLC |
Ceramic anilox roller | (not necessary | can be optional | included |
Chamber doctor blade | none | no need | included |
Each color printing cylinder is equipped with 4 hydraulic cylinders, and the ceramic anilox roller moves in and out hydraulically when the machine starts and stops Convenient horizontal entry | |||
Plate roller crane | none | none | included |
Double-sided printing | yes | yes | yes |
Automatic tension, deviation correction | included | included | included |
Top oven |
|
optional: better oven(right one $1000) |
better oven |
Adjustment handle |
|
|
|
Please feel free to contact us if you are not sure which one is more suitable for you
