3D Square Plastic Bottom Heat Sealing And Cold Cutting Bag Making Machine

3D square bottom bag making machine

Model:
FQ-800
Brand:
XINGPAI
Code:
8477800000

Availability:

Quantity:

plasticbag making machine square bag making machine bottom sealing bag making machine flat bag making machine

Product Description

Product Advantage：

3D square plastic Bottom Heat Sealing And Cold Cutting Bag Making Machine is suitable for sealing and cutting high-density polyethylene (HDPE) and low-density polyethylene (LDPE) films. It is the best equipment for producing square bottom bags of plastic films.

Technical Parameters：

model	FQ -800mm
Maximum sealing and cutting width	700 mm
Maximum sealing and cutting length	15 00mm
Sealing thickness	0.0 2 --0.15mm
Bag making speed	30-1 0 0pcs/min
Number of bags	1 (lines)
Host power	2.2 kw
Machine weight	≈ 1 8 00kg
Dimensions (L×W×H)	7200 × 1750 ×1500mm

machine picture

1. The hot knife adopts a variable frequency motor driven mechanical heavy pressure hot knife, with upper and lower heating functions, and the hot pressing time can be adjusted to ensure a firm and beautiful seal

2. Mechanical transmission of upper and lower hot knives

With air blowing cooling function

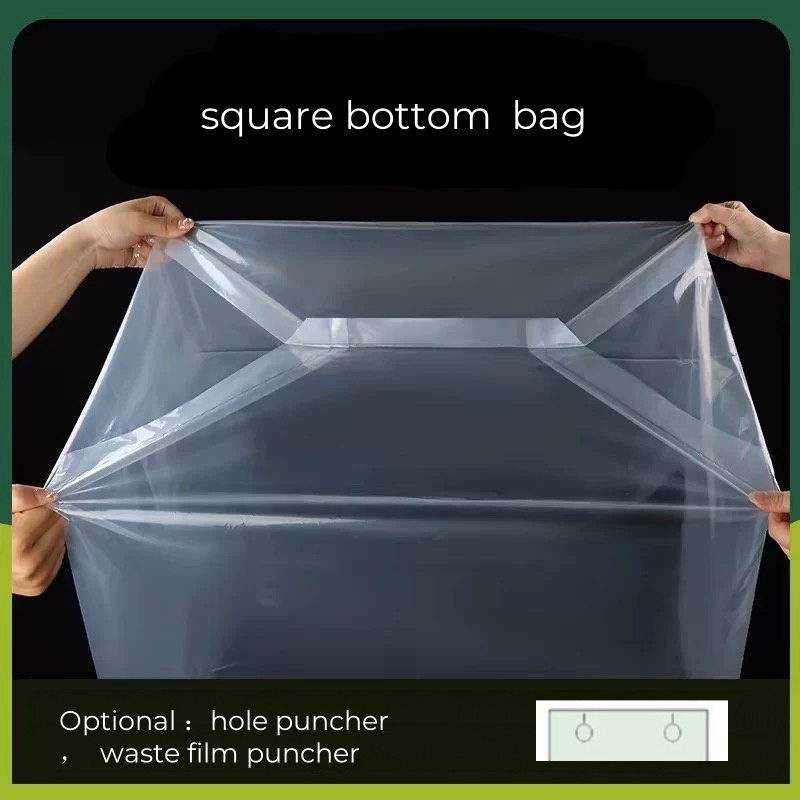

plastic square bottom Bag6
